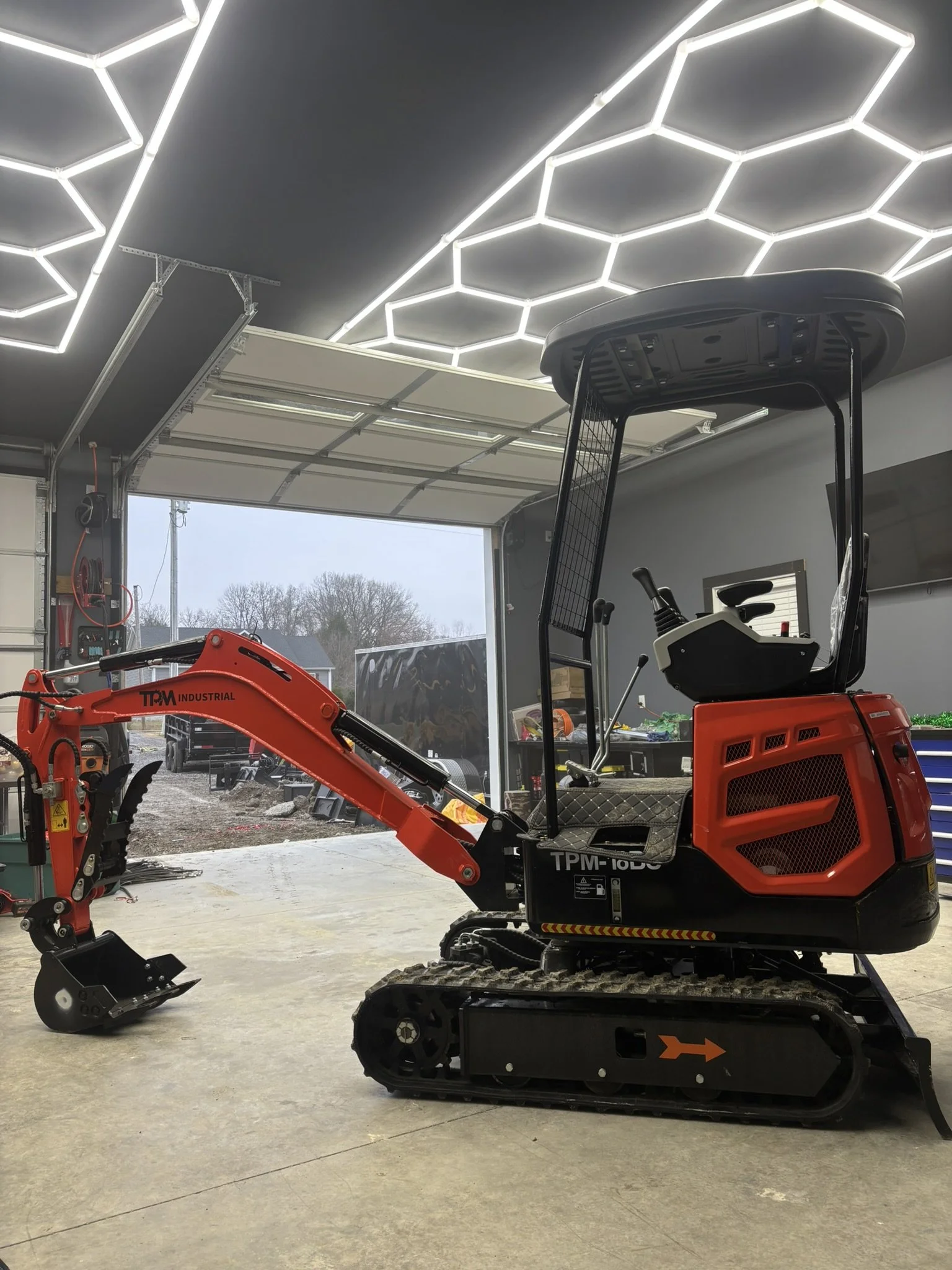

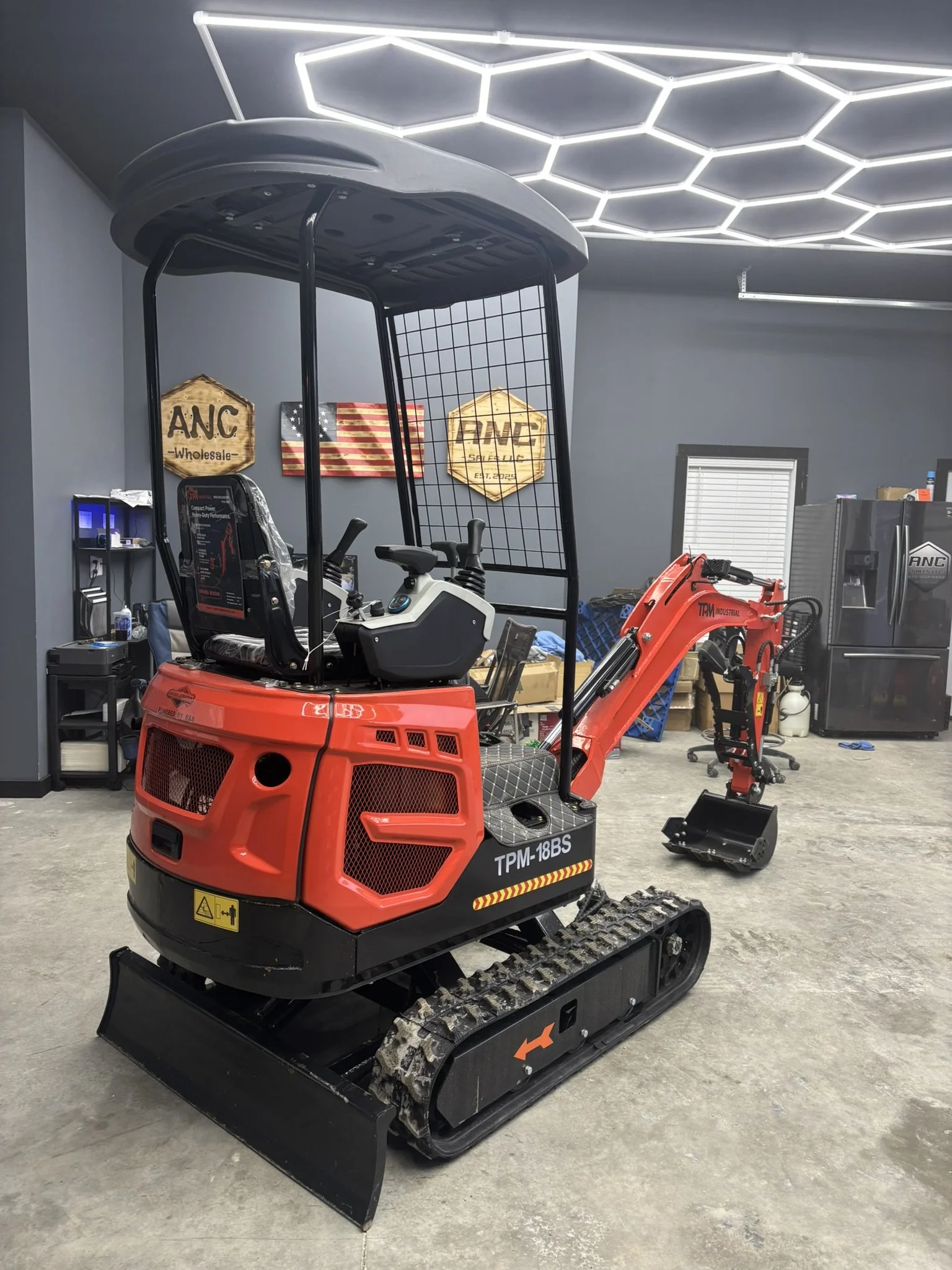

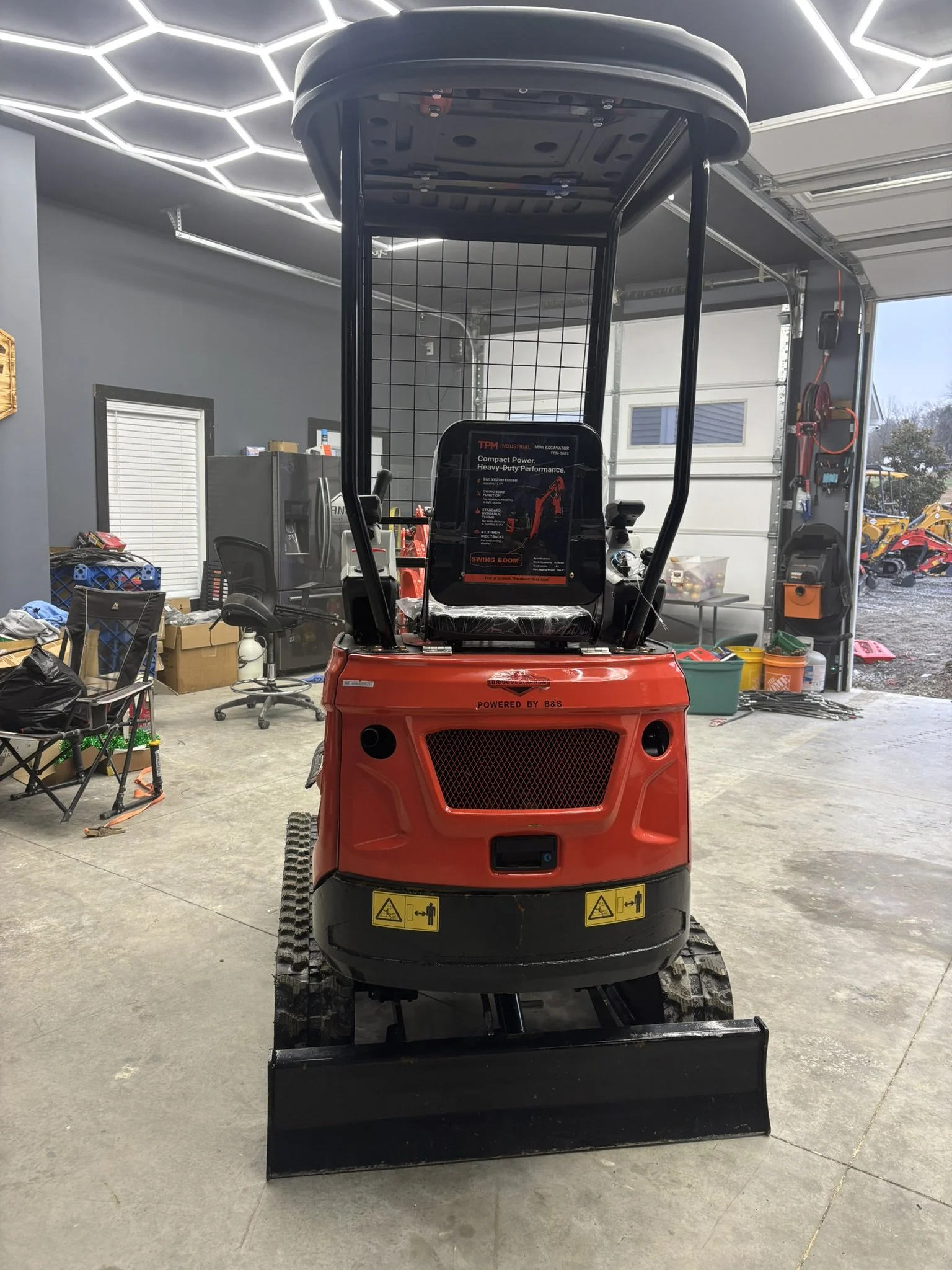

**NEW** TPM-18BS

Features

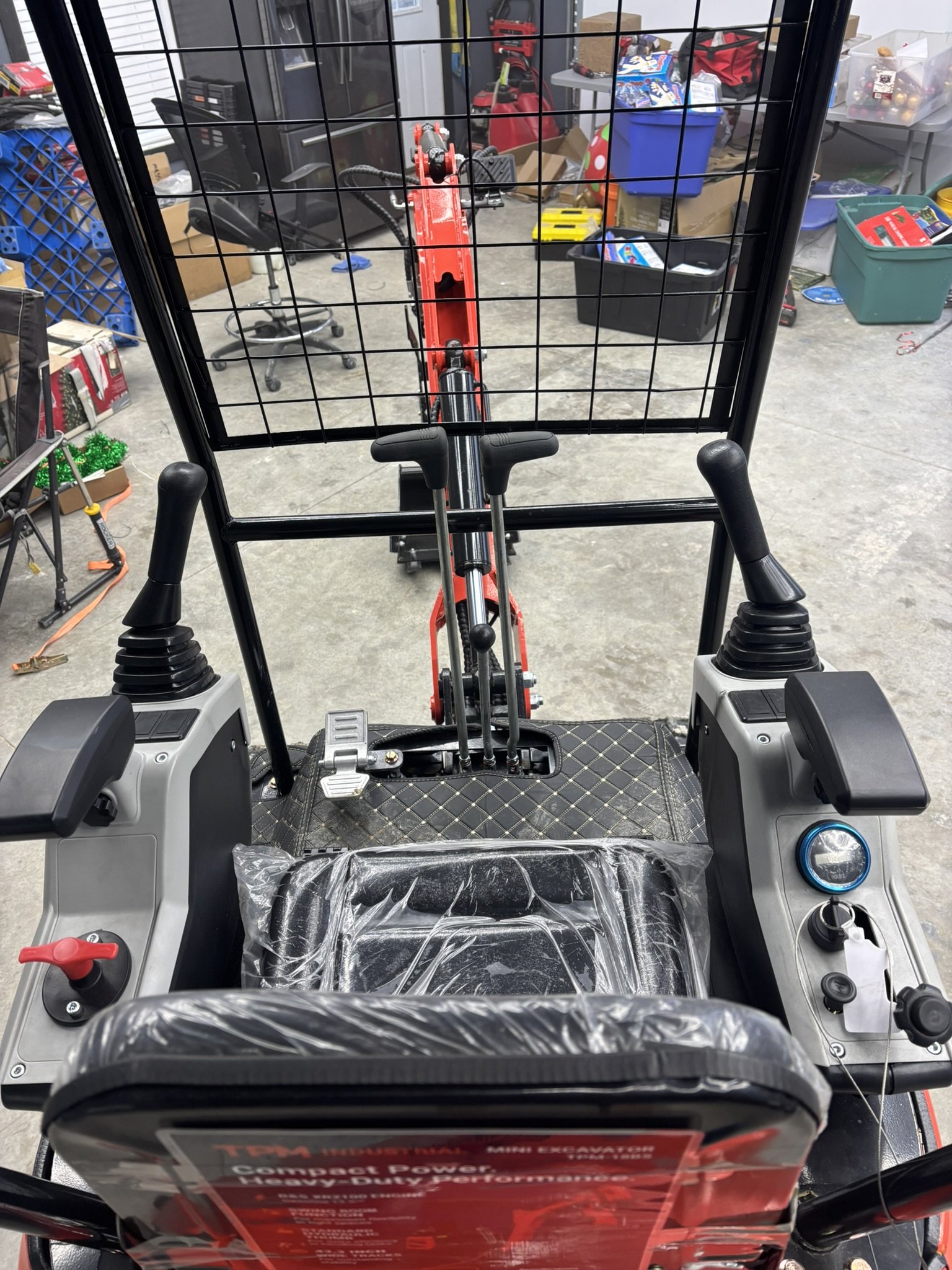

Comfortable operation: the hydraulic pilot system makes the control levers easy to maneuver and operate smoothly.

Boom Swing: enables the boom to swing left and right, expanding the working range and flexibility in operation.

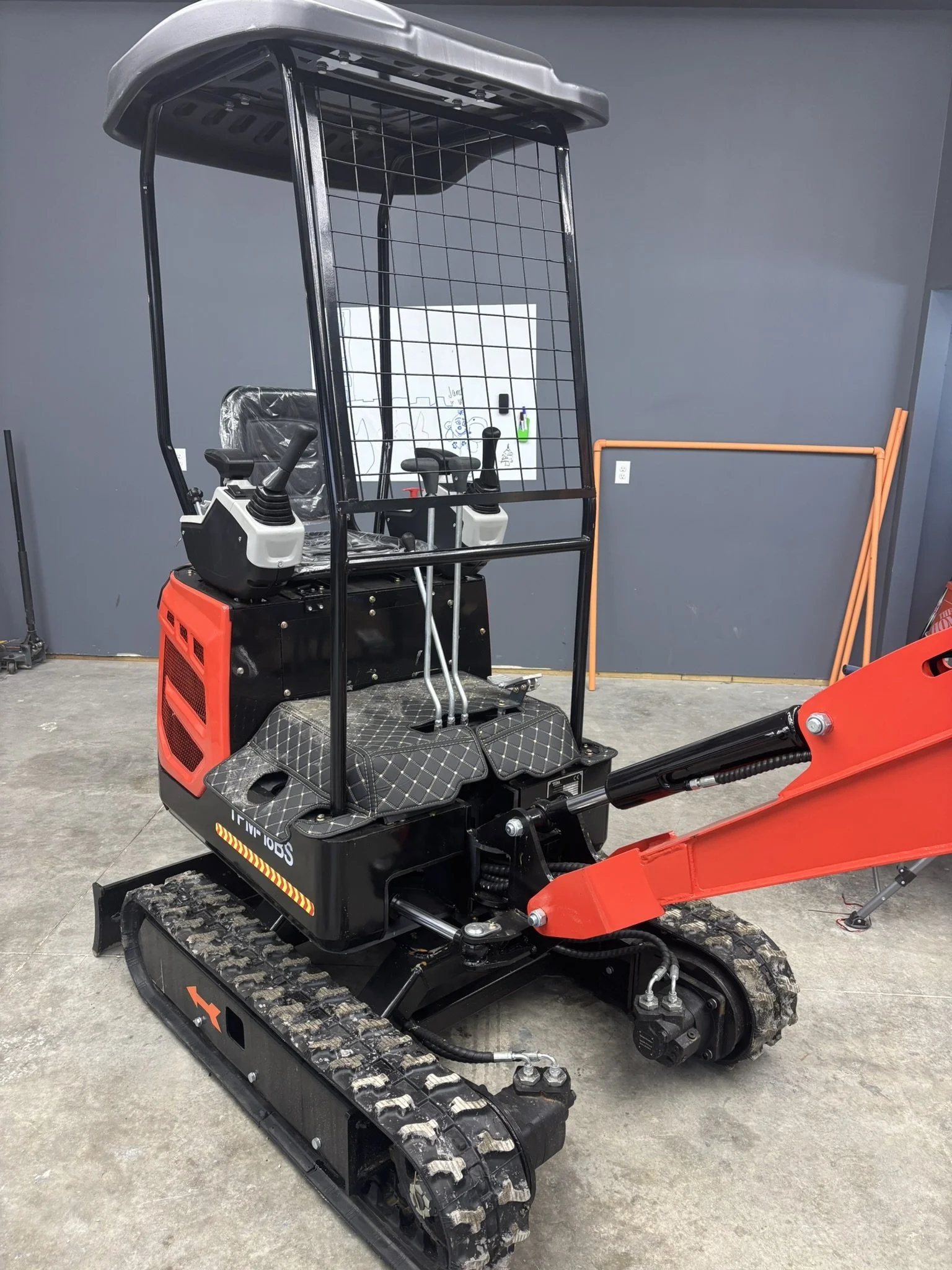

Four-Post Rollover Protection Structure: Enhances safety during Operation.

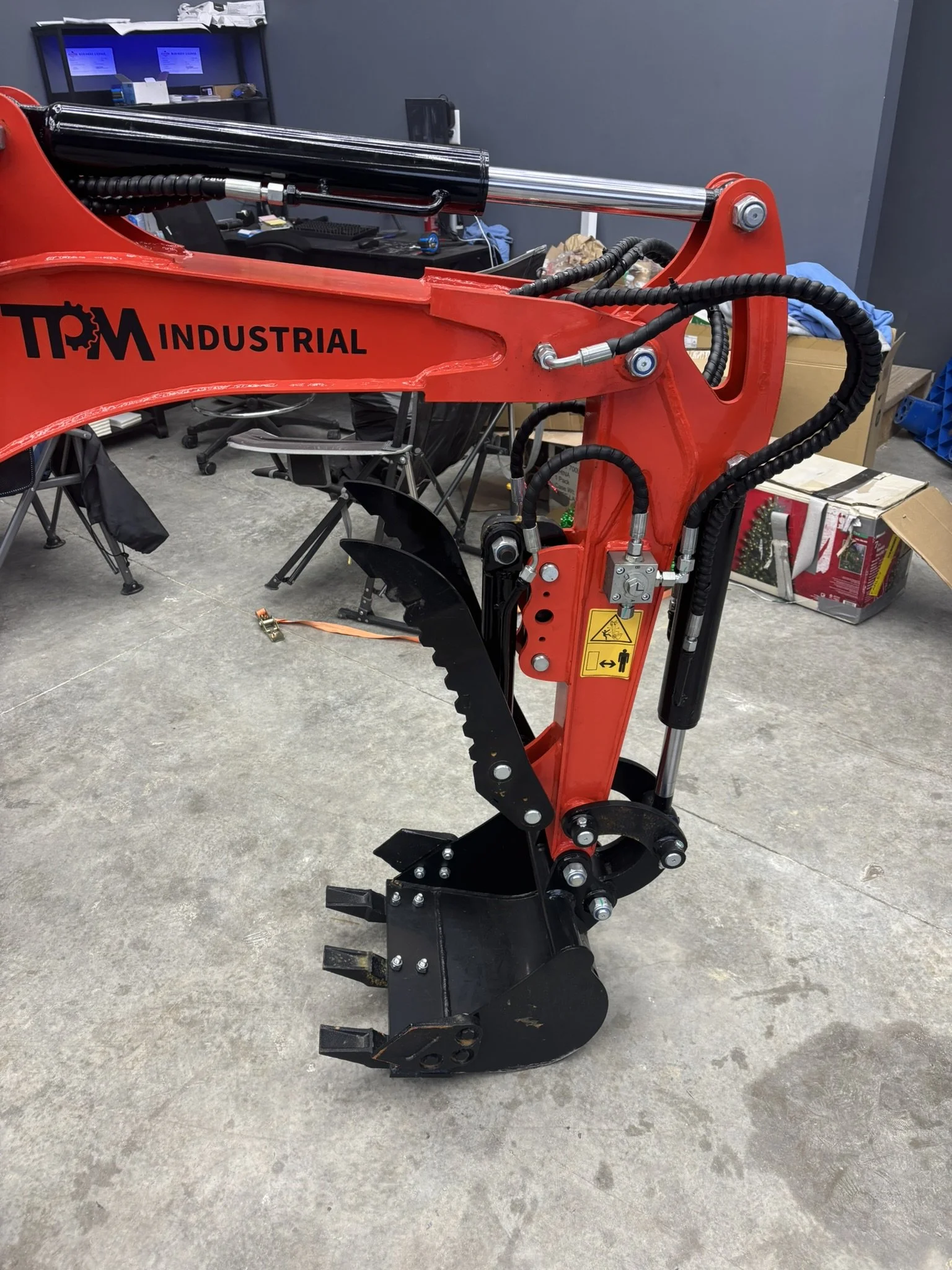

Hydraulic Thumb: Provides added versatility for handling materials

Inverted Arm: Update the working performance, reach more far and dig deeper.

Efficient Performance: Ideal for various construction and agricultural tasks.

User-Friendly Design: Compact and ergonomic for easy operation and maneuverablility.

Versatile Functionality: Handles leveling, backfilling and stability tasks.

Multipurpose Attachments: Interchangeable for digging, crushing and more.

Enhanced Mobility: Rubber crawlers offer low ground pressure and superior traction.

Specs

Basic Performance:

• Machine Weight: Canopy 950 kg

• Operation Mode: Mechanical Handle

• Bucket Capacity: 0.025 m³

• Travel Speed: 0-2.5 Km/h (Low/High)

• Gradeability: 35%

• Ground Pressure: 32 Kpa

• Maximum Digging Radius: 2800 mm

• Maximum Digging Depth: 1700 mm

• Maximum Digging Height: 2710 mm

• Maximum Unloading Height: 1850 mm

Body Dimensions:

• Transport Length: 2140 mm

• Chassis Width: 1100 mm

• Transport Width: 930 mm

• Transport Height with Canopy: 2180 mm

• Ground Clearance of Upper Platform: 380 mm

• Bucket Width: 400 mm

• Dozer Blade Width: 1100 mm

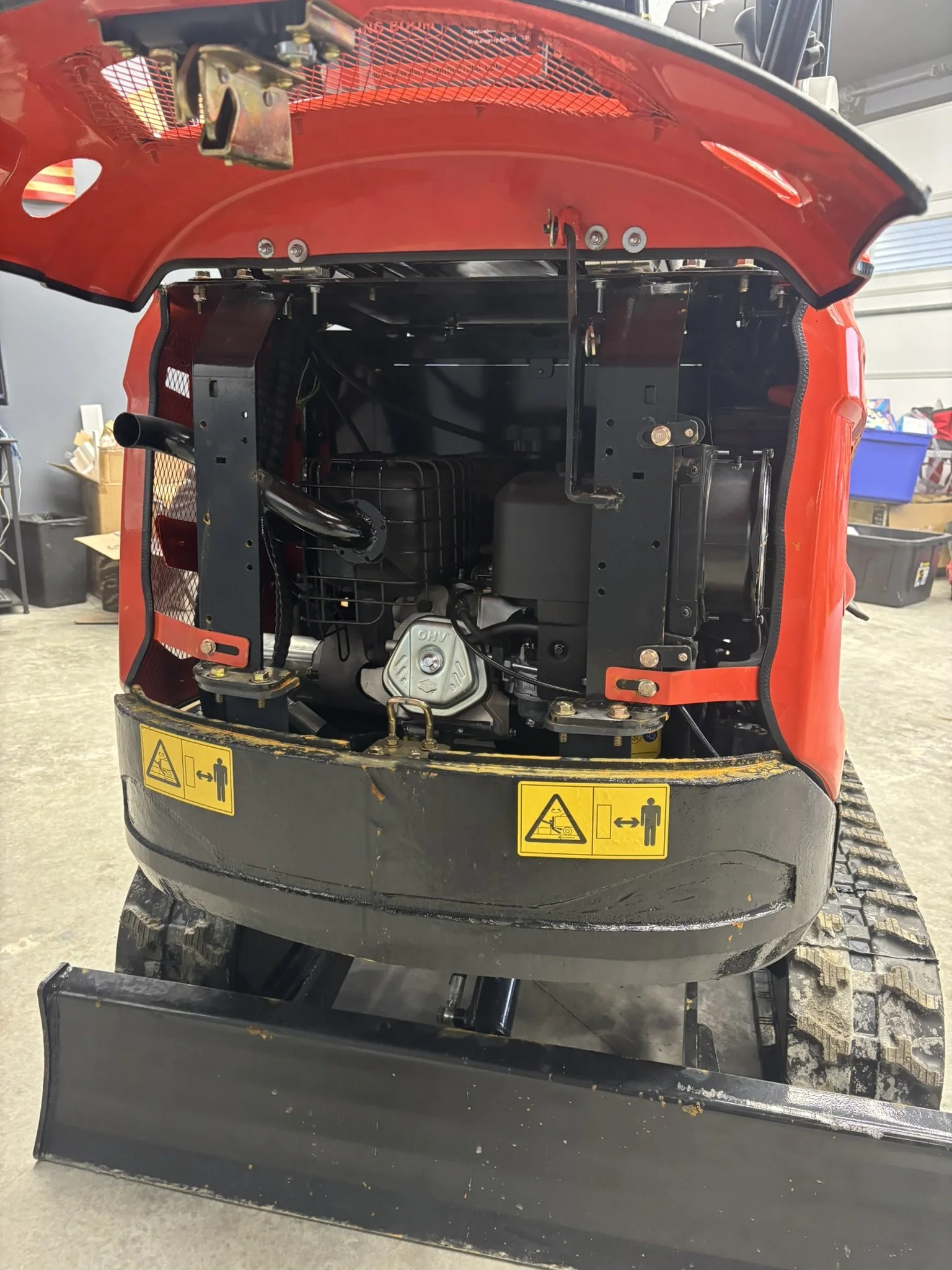

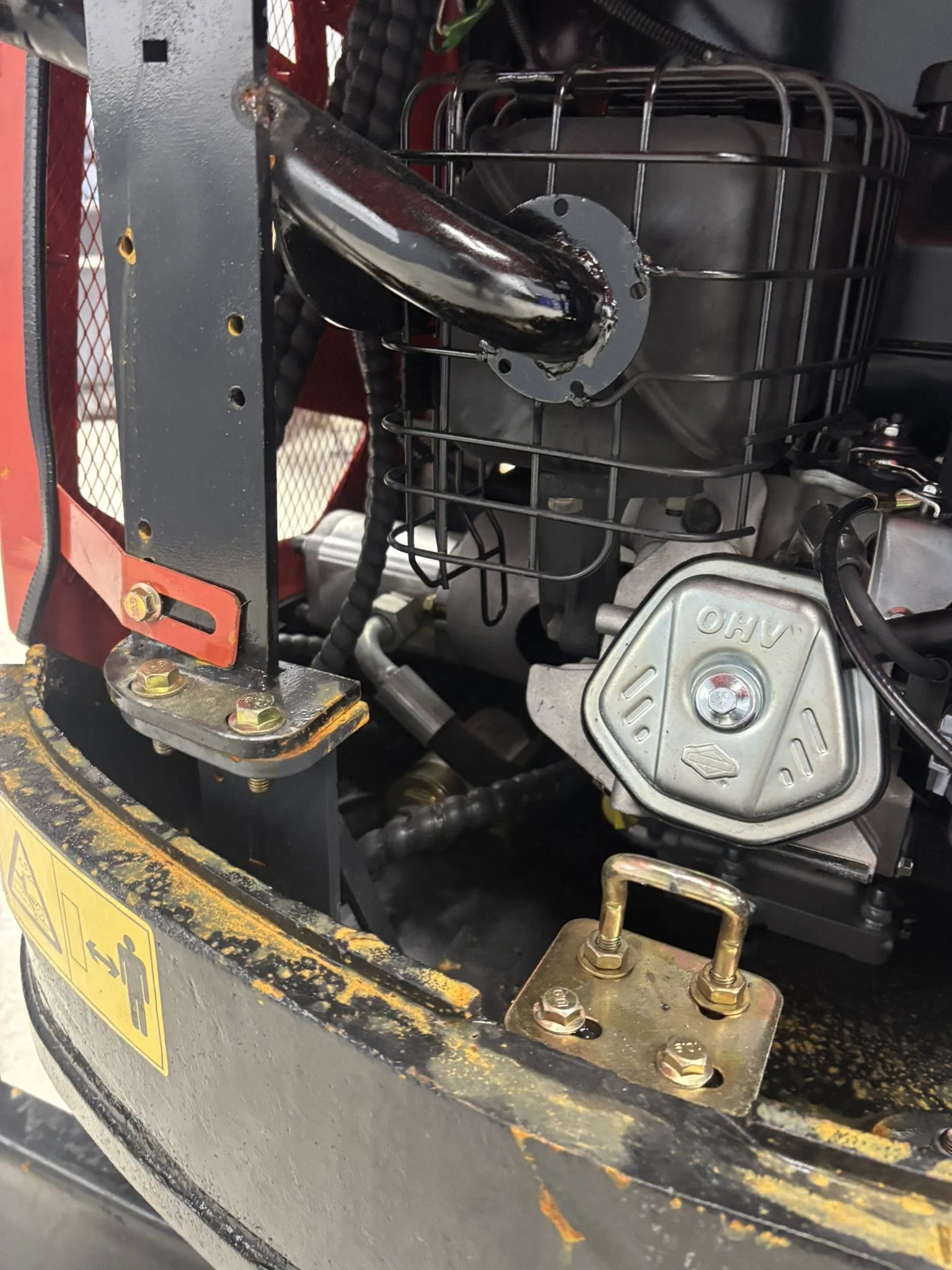

Engine Specifications:

• Brand: BRIGGS & STRATTON

• Model: B&S 13.5HP

• Maximum Horsepower: 13.5 ps

• Maximum Power: 10 Kw

• Maximum Speed: 3600 rpm

• Displacement: 420 CC

• Number of Cylinders: 1

• Cooling Method: Air-cooled

• Engine Oil Replacement Volume: 1.1 L

• Fuel Type: Gasoline

• Fuel Grade: 92#

• Theoretical Fuel Consumption: 0.5-1.2 L/h

Hydraulic System:

• Main Pump Type/Model: Gear Pump/06

• Main Pump Brand: Tianjin

• Rated Setting Pressure: 25 Mpa

• Maximum Flow Rate of Main Pump: 23.4 L/min

• Multi-Way Valve: 8-Way Multi-Valve

• Multi-Way Valve Brand: Jiangsu JL

• Rated Setting Pressure: 16 Mpa

• Maximum Setting Pressure: 16 Mpa

• Travel Hydraulic Motor Type: BM6K-315

• Travel Motor Brand: Taiheng

• Motor Displacement: 315

• Swing Hydraulic Motor Type: BM2-315

• Displacement: 315

• Tension Method: Mechanical Tension

Track Details:

• Rubber Track: 180x72x37 (Width Pitch Number of Links)

• Rubber Block: Yes

Tank Capacities:

• Fuel Tank: 6.6 L

• Hydraulic Oil Tank: 18 L
